The CROSSRAY Compact eXtreme Electric BBQ Outdoor Kitchen packs powerful performance into a compact design, perfect for smaller outdoor spaces. With the stylish Extreme Electric BBQ and options like a single fridge, it brings the elegance of the full-sized model to a space-conscious setup. Ideal for cooking and entertaining outdoors with ease and style.

Front kickboards are supplied as standard with all models. Roasting tray, rotisserie kit shown are sold separately.

Includes a CROSSRAY eXtreme Electric BBQ

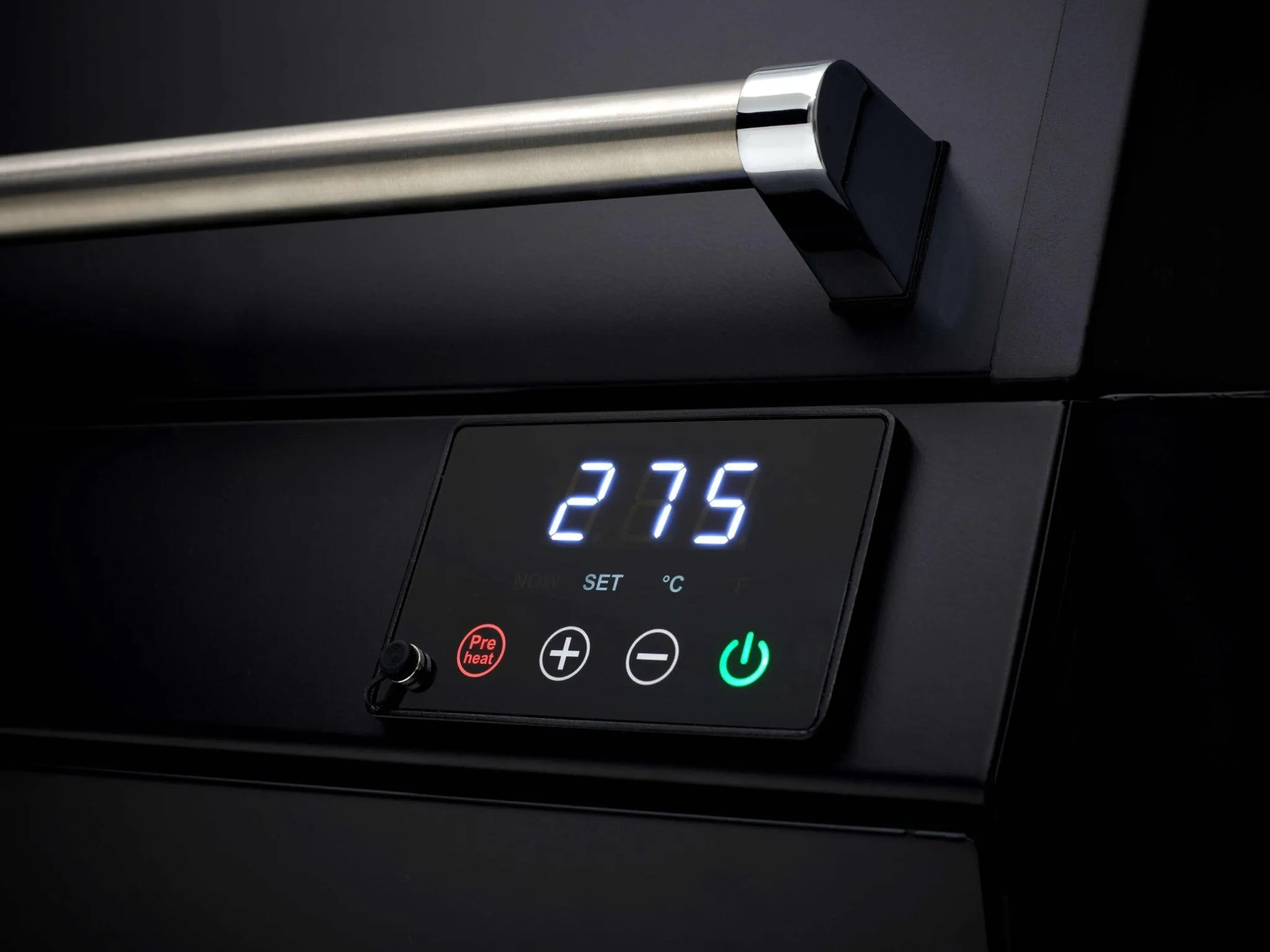

Electric BBQ with 300°C cooking performance – equivalent or superior to all standard gas BBQs on the market. Digital, programmable display included

Perfect for all types of cooking – grilling, roasting large meats, low & slow

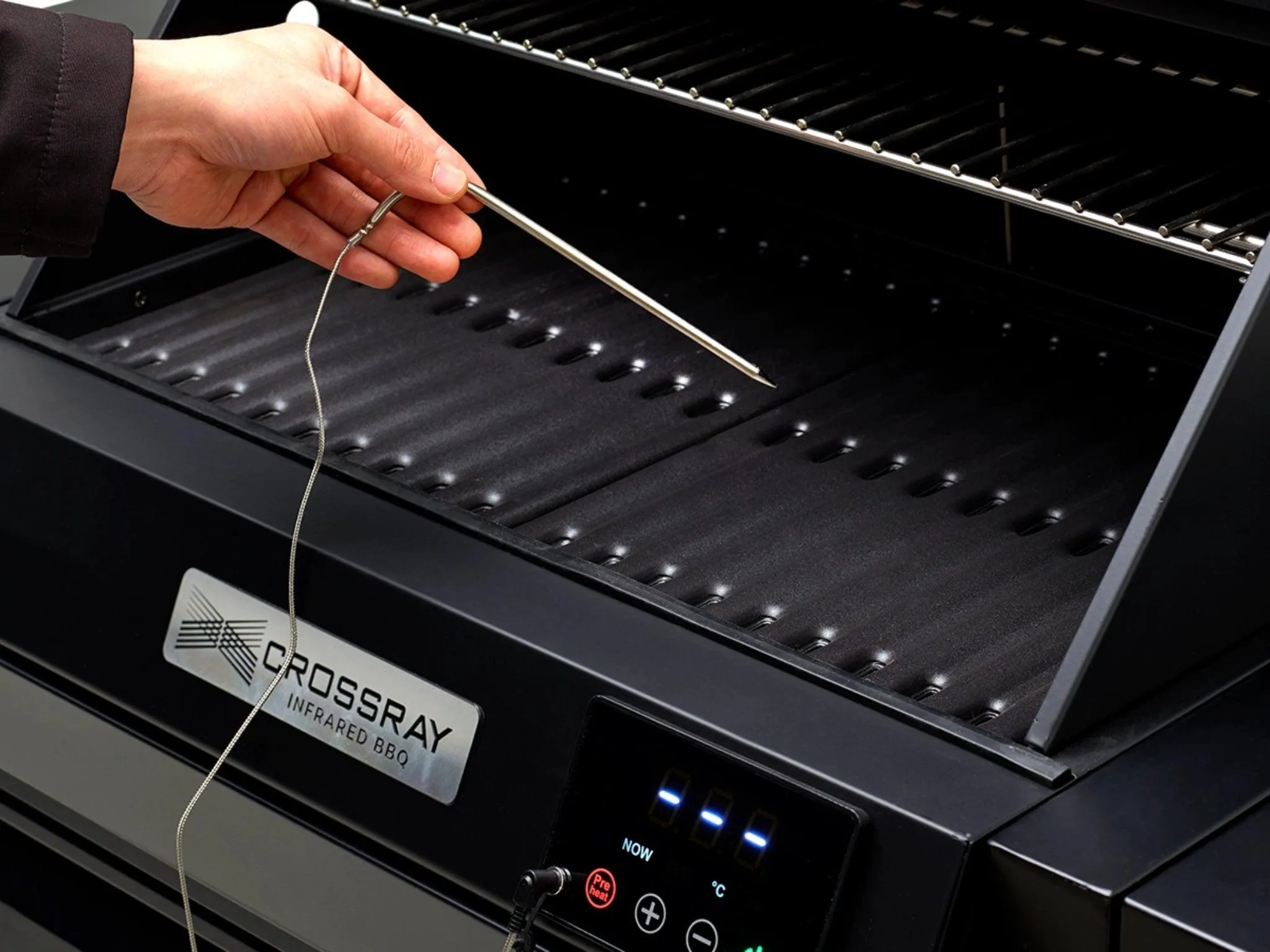

Meat probe is included to set the preferred cooking temperature, for the perfect cook

Substantial sintered stone benchtop with 60 mm edge & quartz effect as standard on all options, providing an extremely durable & robust, UV-, moisture-, heat-, scratch- & stain-resistant surface

Cabinets are now corrosion-free and have been upgraded to a zinc-coated & powder-coated mild steel construction. Suitable for exposed and coastal applications

Flat pack for easy DIY assembly

Adjustable feet & castor wheels included on all cabinets

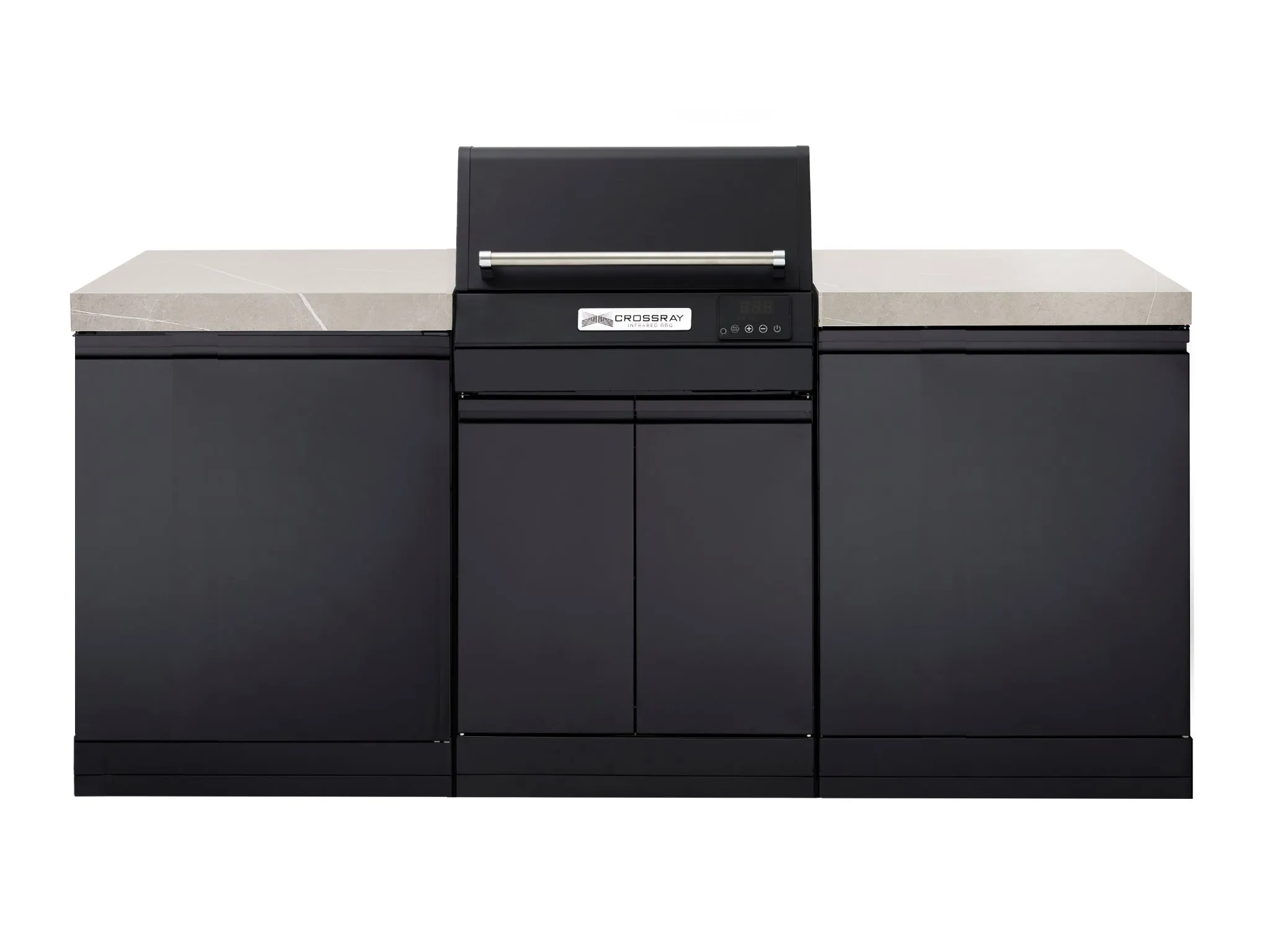

CROSSRAY Compact eXtreme Electric BBQ Outdoor Kitchen

Quick start guide

Dimensions
BBQ cabinet
Width: 61.8 cm
Depth (BBQ hood open & closed): 65.8 cm
Height (without BBQ): 65 cm
Height (with BBQ): 114 cm

Side cabinet
Width: 61.5 cm
Depth: 60 cm
Height: 90 cm

Overall
Width: 184.8 cm
Depth: 65.8 cm
Height (benchtop): 90 cm
Height (with BBQ): 114 cm

Output: 2200W total output (2 x 1100W)

Cooking area: 2772 cm²

Power: 3-pin plug for standard 10A GPO (240V)

Grills: Two BBQ grills

Tray: Bottom mounted oil collection tray

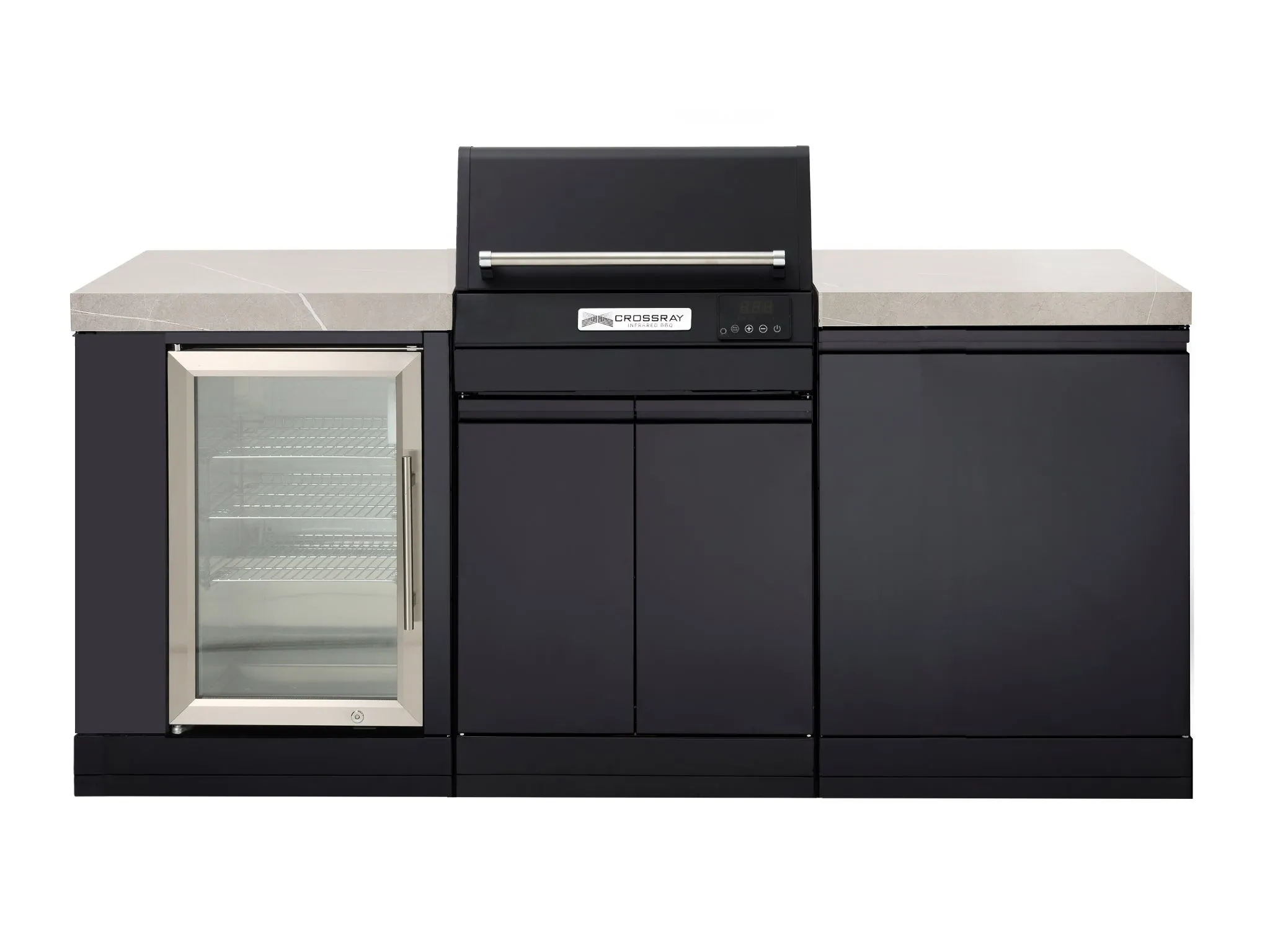

Fridge: 63L capacity, with temperature control, triple glazed lockable door & blue LED back-lighting

Materials
Cabinets: Zinc-coated & powder-coated mild steel with double-skinned doors & magnetic closure
Benchtop: Sintered stone
Fridge: 304 stainless steel, triple glazed door
BBQ hood: SPCC steel outer wall & aluminium plated inner wall
BBQ hood handle: 304 stainless steel with aluminium alloy handle seat
Grill plate & drain tray: 430 stainless steel

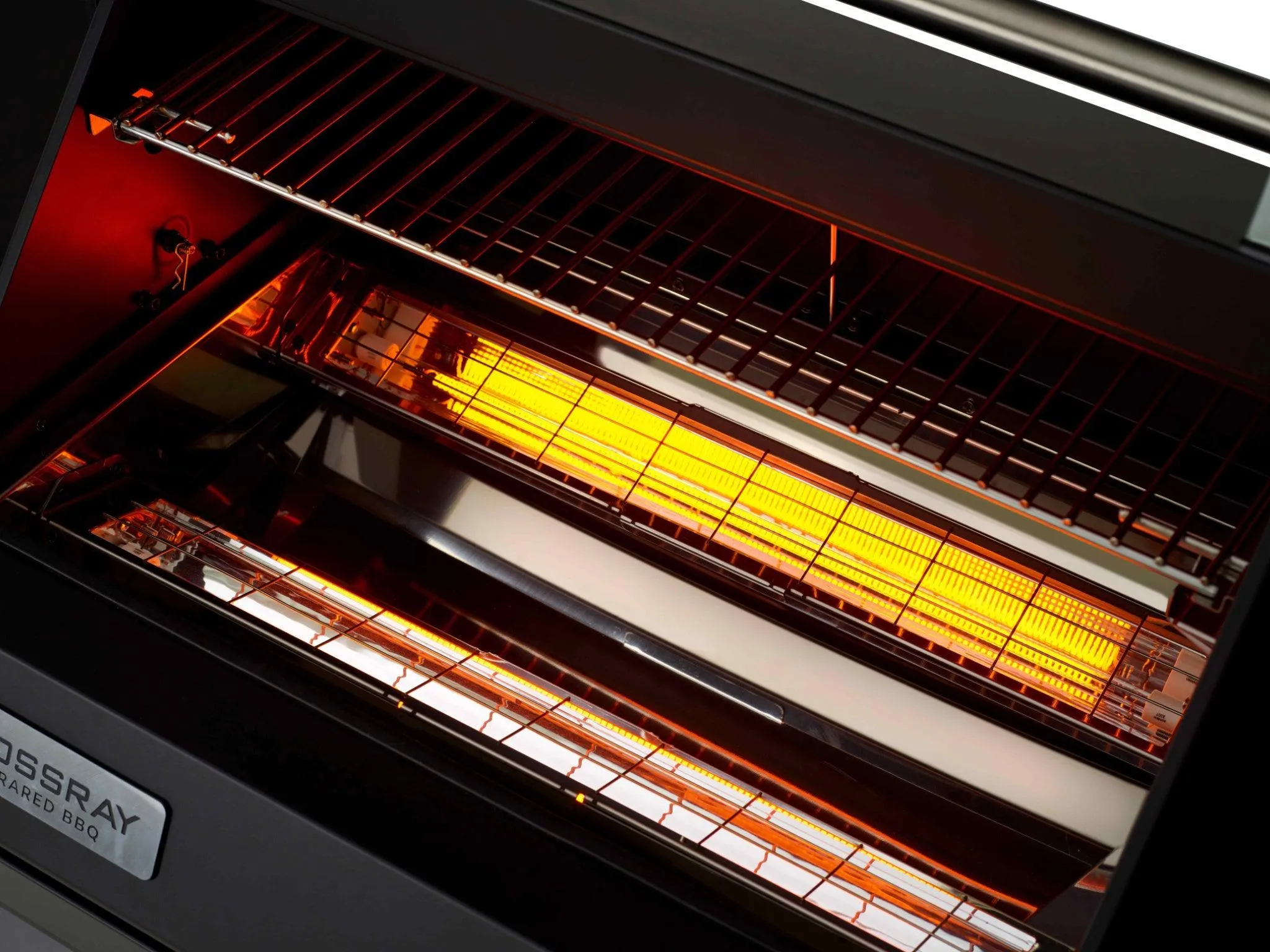

Cooking elements: Carbon fibre, glass encased

Requires assembly

Part Number
One Fridge: TCEK-MINI-1
No Fridge: TCEK-MINI-2

EESS Equipment Number
E2024152165

Warranty
This product comes with 2-year warranty provided by the product manufacturer. Please see the product box and literature for details. Rights under the product manufacturer’s warranty are in addition to any rights you have under Australian consumer law.
