The new CROSSRAY Mini Outdoor Kitchen with the new 2-burner drop-in gas BBQ elevates outdoor cooking to a whole new level – perfect for your courtyard or al fresco area. Add a real touch of class with this unique, world class fully-equipped kitchen, that gives you everything you need to prepare the perfect meal for family and friends.

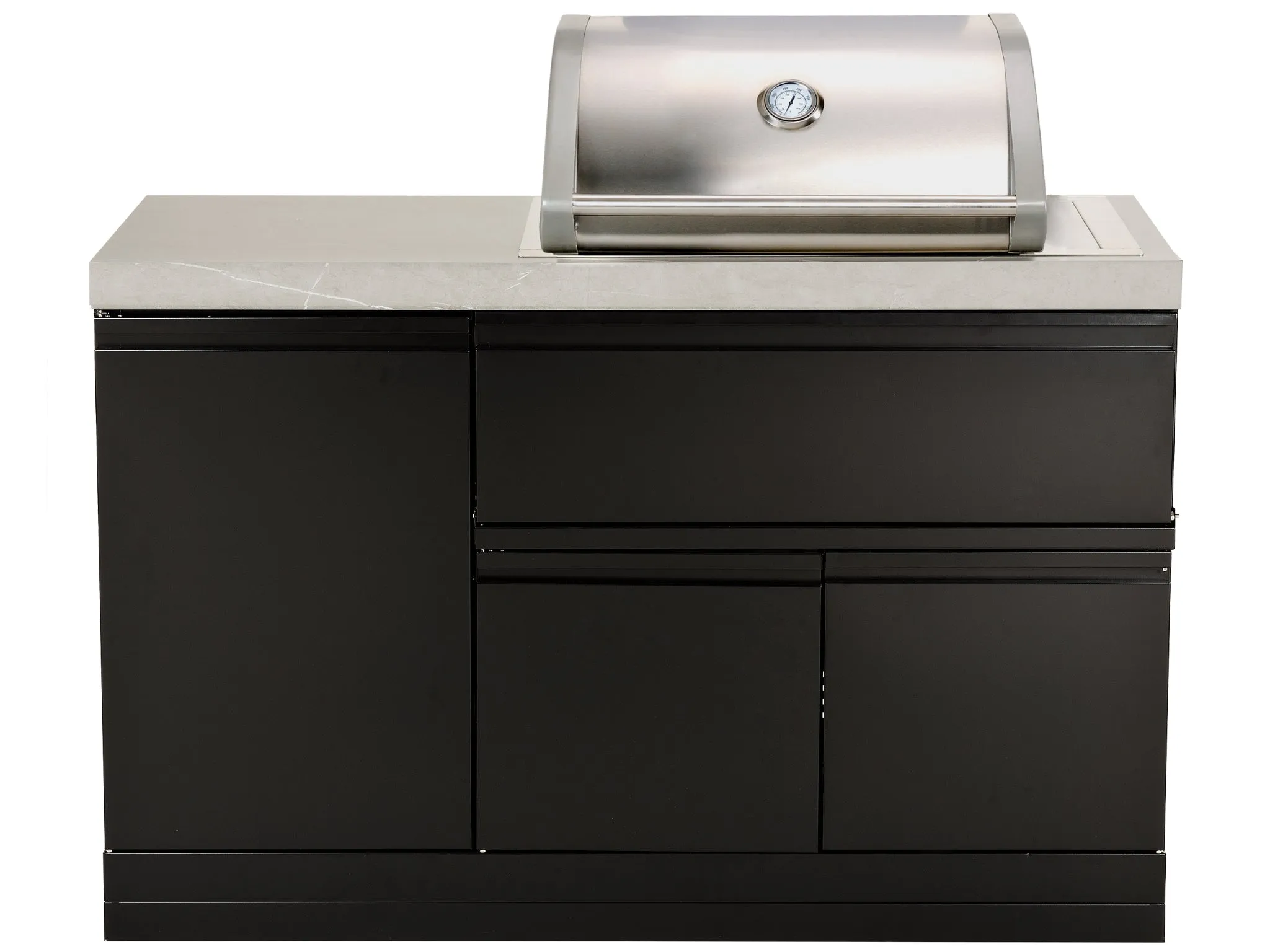

Complete, compact outdoor kitchen featuring a flush-mounted CROSSRAY 2-burner gas BBQ, with sintered stone benchtop, under-bench storage and optional single fridge

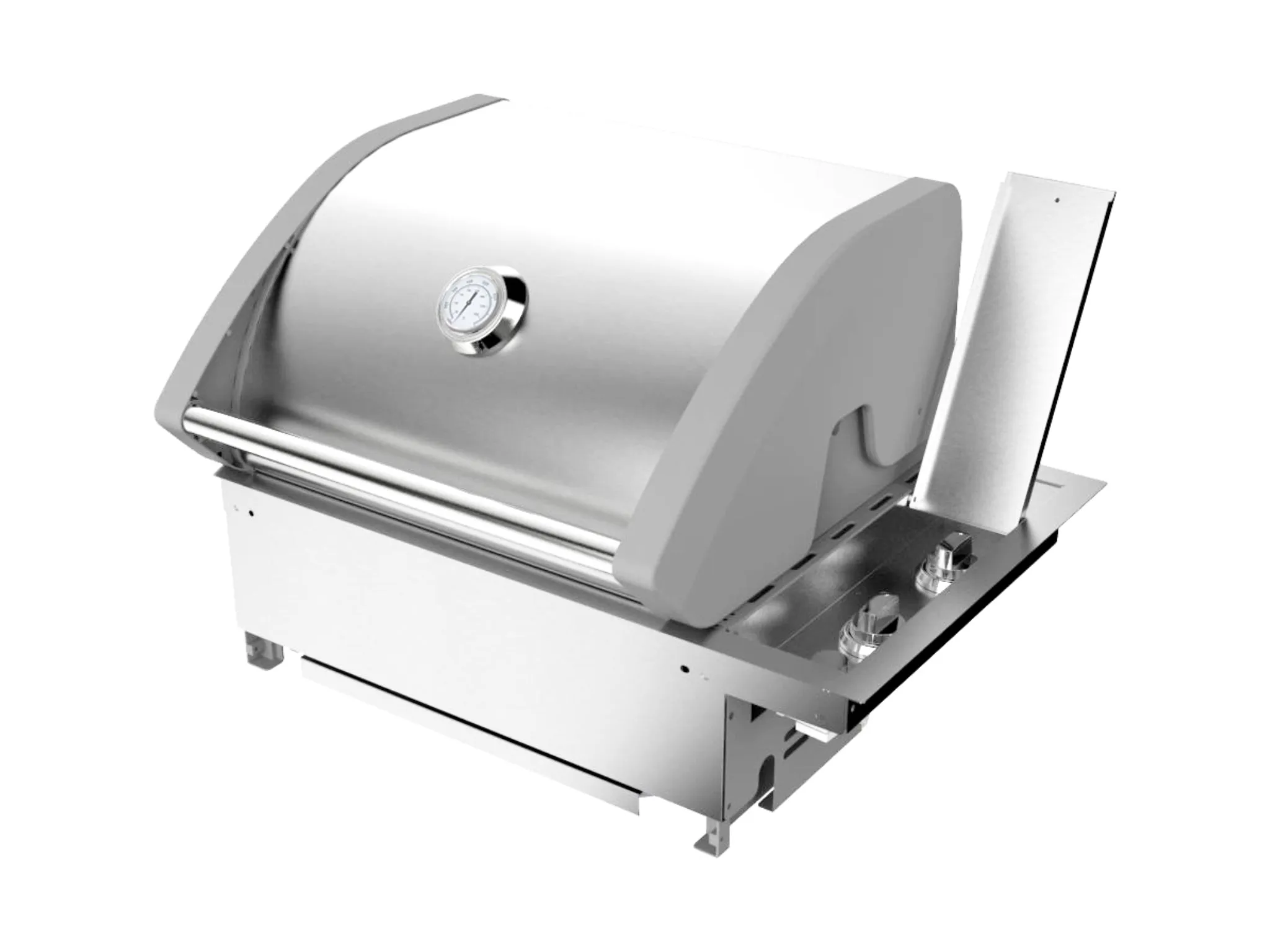

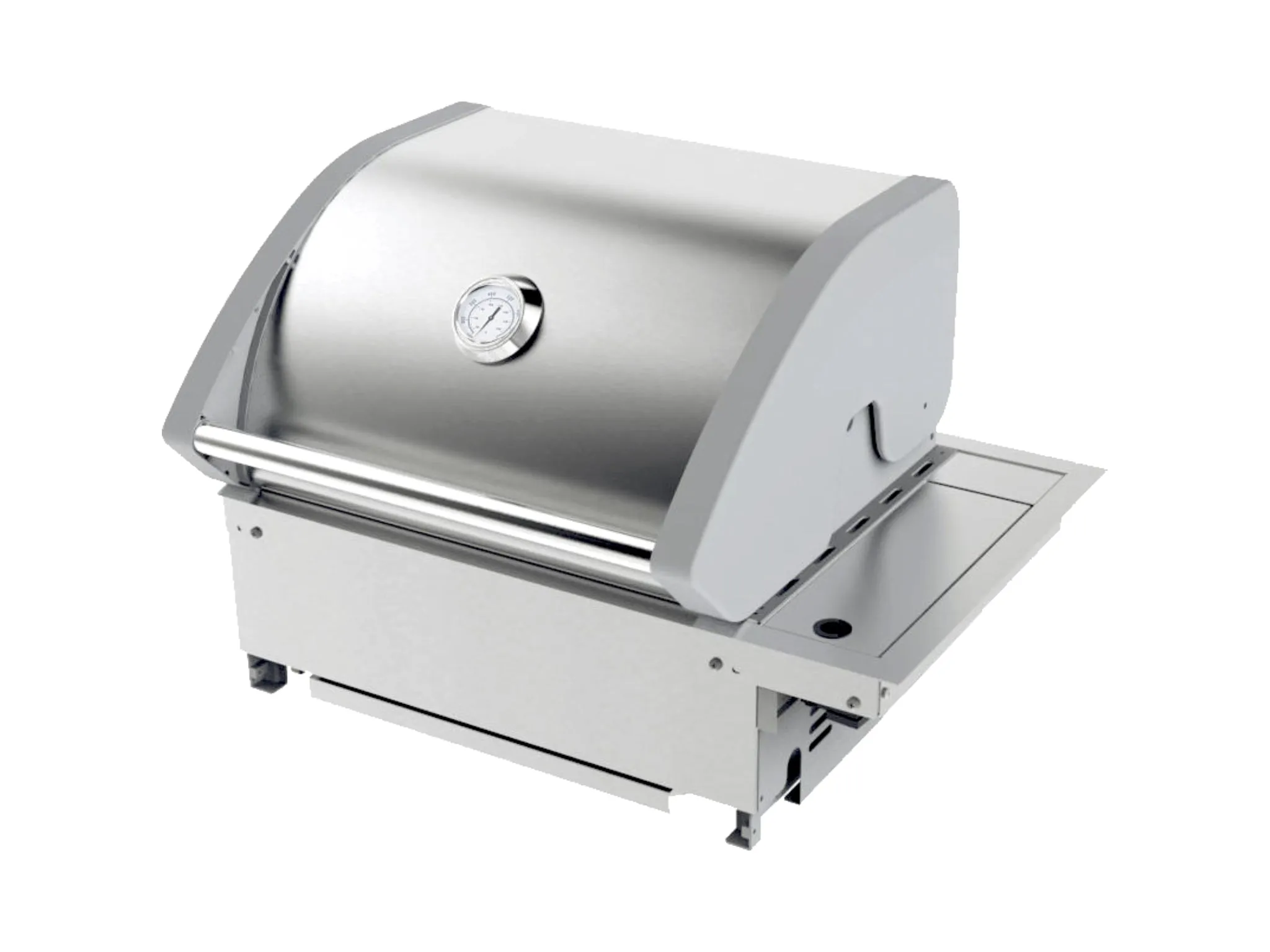

High intensity, high temperature output gas BBQ – in-built so that it is flush with the benchtop

Cook with the lid up or down. Plenty of hood height for large meats. Compatible with a rotisserie kit. Natural gas conversion and top access conversion kits available

Zinc-coated & powder-coated black cabinet provides full corrosion protection. Includes a top pull-down shelf and double-skin doors below

Complete compact outdoor kitchen featuring a flush-mounted electric BBQ, single fridge, with one-piece sintered stone benchtop and under-bench storage

Castor wheels for easy manoeuvrability. Front kickboard included as standard

Perfect for smaller backyards & al fresco areas, townhouses, balconies & apartments

2-burner flush mounted BBQ, 2 x 13MJ angled ceramic infrared burners. Flame failure included as standard and meets indoor code

Easy DIY Installation. All appliances are suitable to plug into a standard 10A GPO

CROSSRAY 2-Burner BBQ Mini Outdoor Kitchen

Quick start guide

Width: 138.5 cm
Depth: 61 cm
Height: 140.3 cm (with BBQ)
Weight (One Fridge): 131 kg
Weight (No Fridge): 102.3 kg

Burner capacity: 13 MJ/hr each

Cooking area: 3556 cm²

Burners: Two surface combustion ceramic infrared burners

Grills: Two BBQ grills and two-piece upper cooking rack

Gas type: Universal LPG, convertible to natural gas (kit sold separately)

Tray: Front pull out drip tray

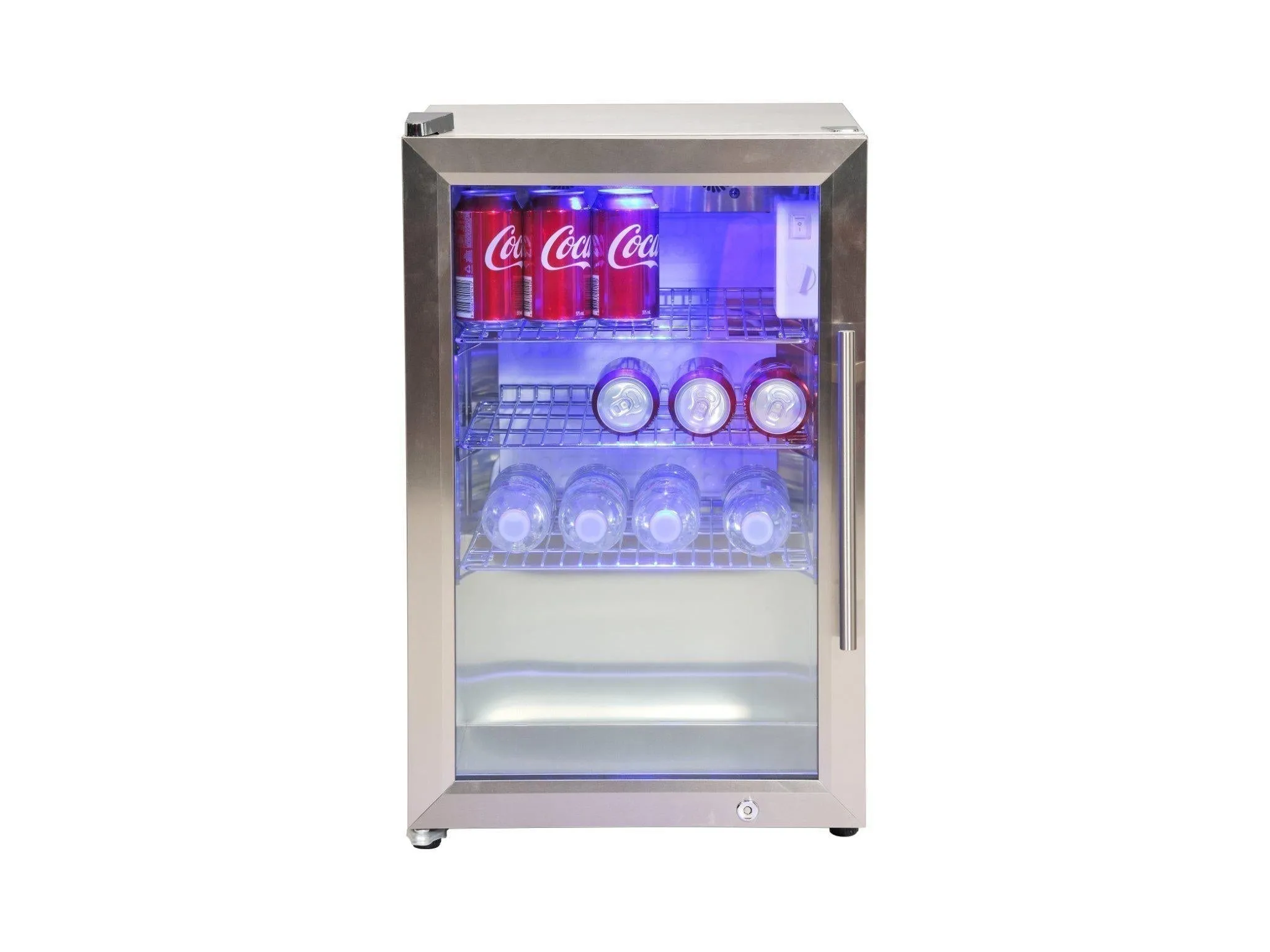

Fridge: 63L capacity, with temperature control, triple glazed lockable door & blue LED back-lighting

Materials
Cabinet: Zinc-coated & powder-coated mild steel with double-skinned doors & magnetic closure
Benchtop: Sintered stone with 60 mm edge
Fridge: 304 stainless steel, triple glazed door
BBQ front and rear panels & lid: 304 stainless steel
BBQ side and end panels: Die-cast aluminium
BBQ burners: Ceramic
Grill plates: Ceramic-coated cast iron

Part Number
One Fridge: TC2K-MK1
No Fridge: TC2K-MK2

Warranty
This product comes with 2-year warranty provided by the product manufacturer. Please see the product box and literature for details. Rights under the product manufacturer’s warranty are in addition to any rights you have under Australian consumer law.
